Description

The BSIDE HX1 Handheld Thermal Imaging Camera combines accurate temperature measurement with high-resolution thermal imaging, making it ideal for electrical inspections, HVAC diagnostics, automotive troubleshooting, and industrial maintenance. Featuring a sharp 240 × 240 infrared resolution and a 2.4-inch LCD display, it captures detailed thermal images with smooth 25Hz refresh for real-time analysis.

With a wide temperature measurement range of -20°C to 550°C and adjustable emissivity from 0.01 to 1.00, the HX1 delivers precise readings across a variety of surfaces and materials. Fifteen color palettes allow you to visualize heat patterns clearly, while high and low temperature alarms provide instant alerts through images, buzzer sounds, and LED flashes.

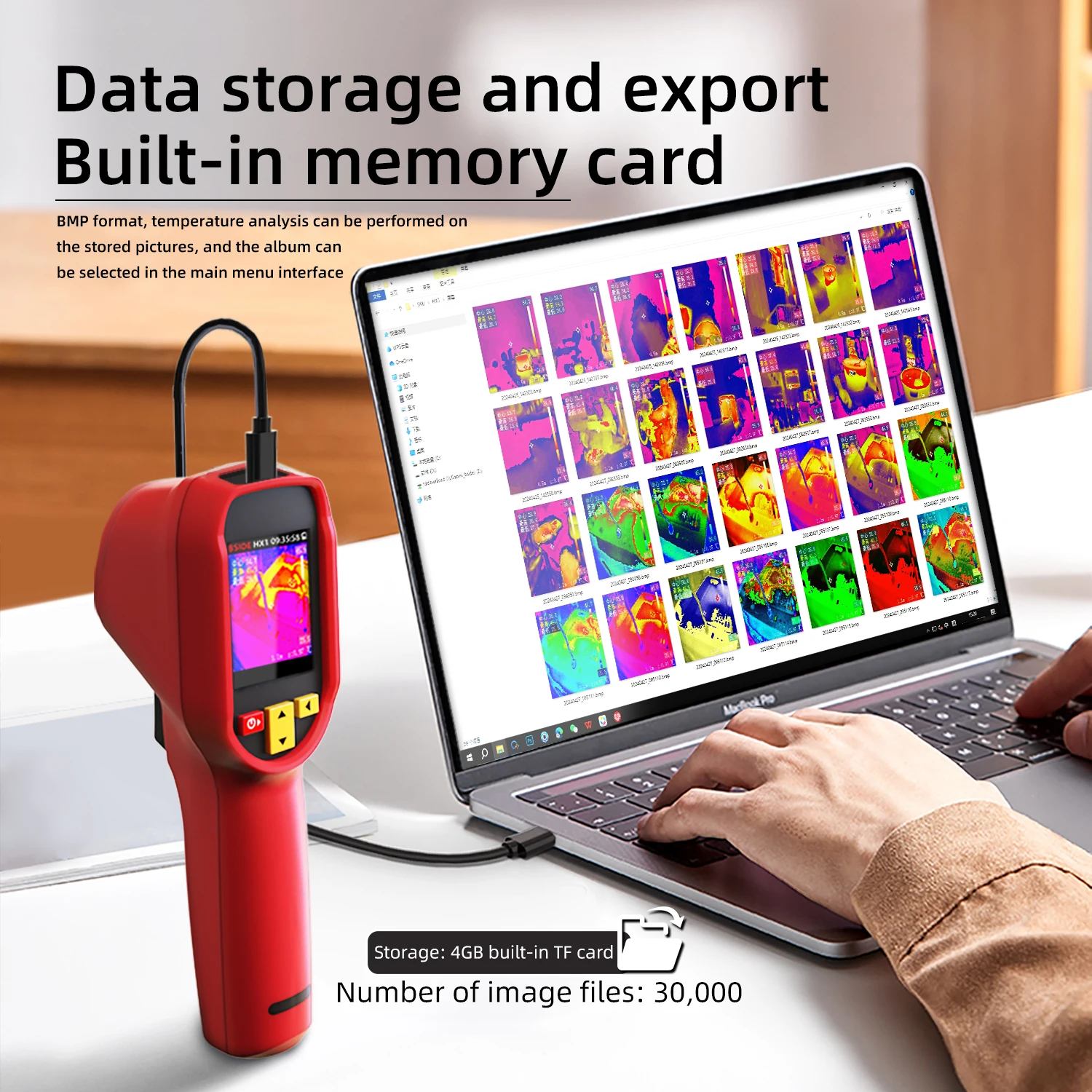

The built-in laser pointer and LED illumination improve targeting and visibility in dark environments. Images can be stored on the integrated 4GB memory and exported to a PC for advanced analysis using included software. The powerful 2500mAh rechargeable lithium battery provides extended operating time for field work.

Designed for durability, the HX1 features a rugged double-injection molded body with IP54 protection against dust and water and can withstand drops from up to 1.5 meters. A tripod mount adds convenience for hands-free operation, and the included EVA carrying case offers secure storage and transport.

Key Features:

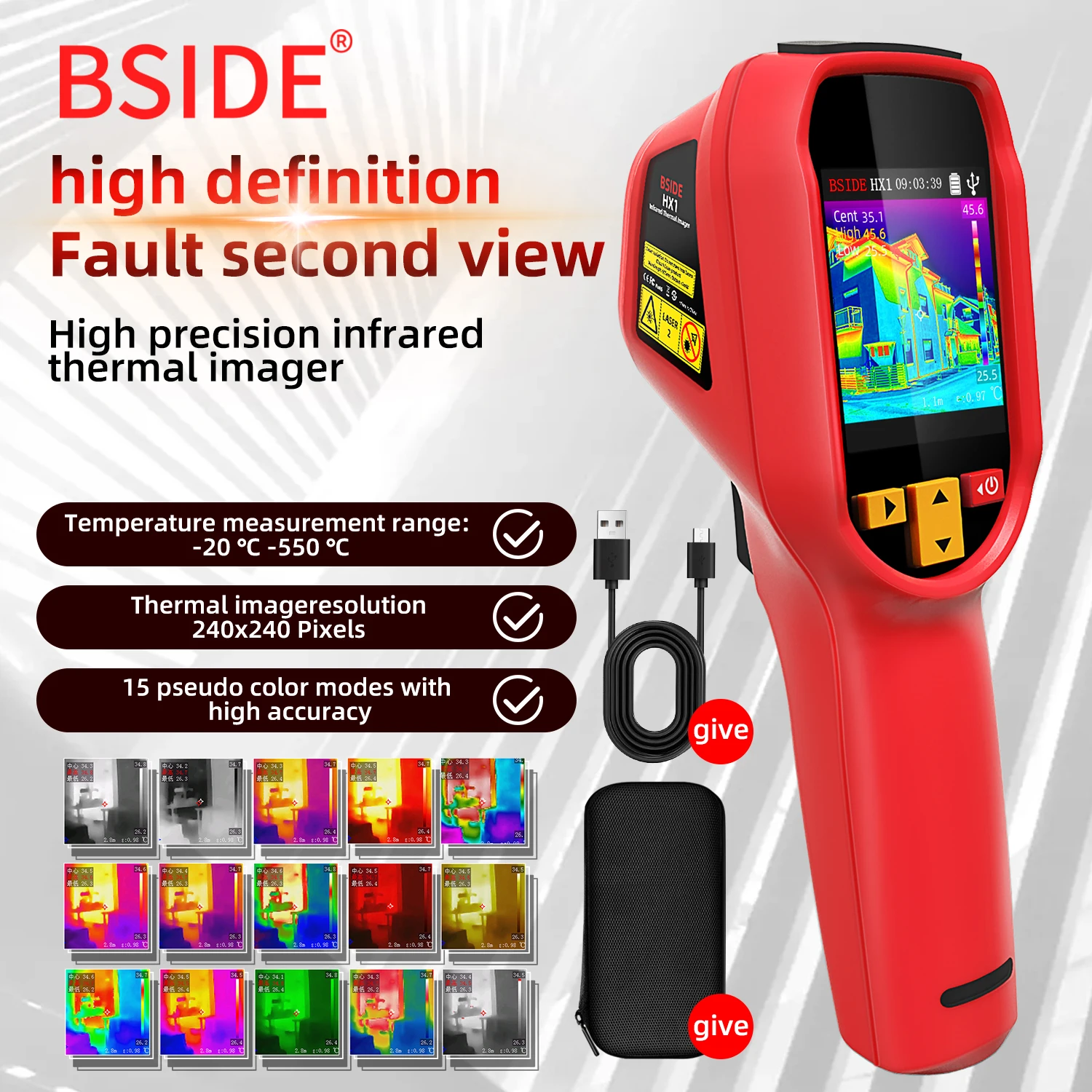

• 240 × 240 infrared thermal resolution

• Temperature range: -20°C to 550°C

• 15 selectable color palettes

• Adjustable emissivity (0.01 to 1.00)

• 2.4-inch LCD display

• 25Hz refresh rate

• Built-in laser pointer and LED light

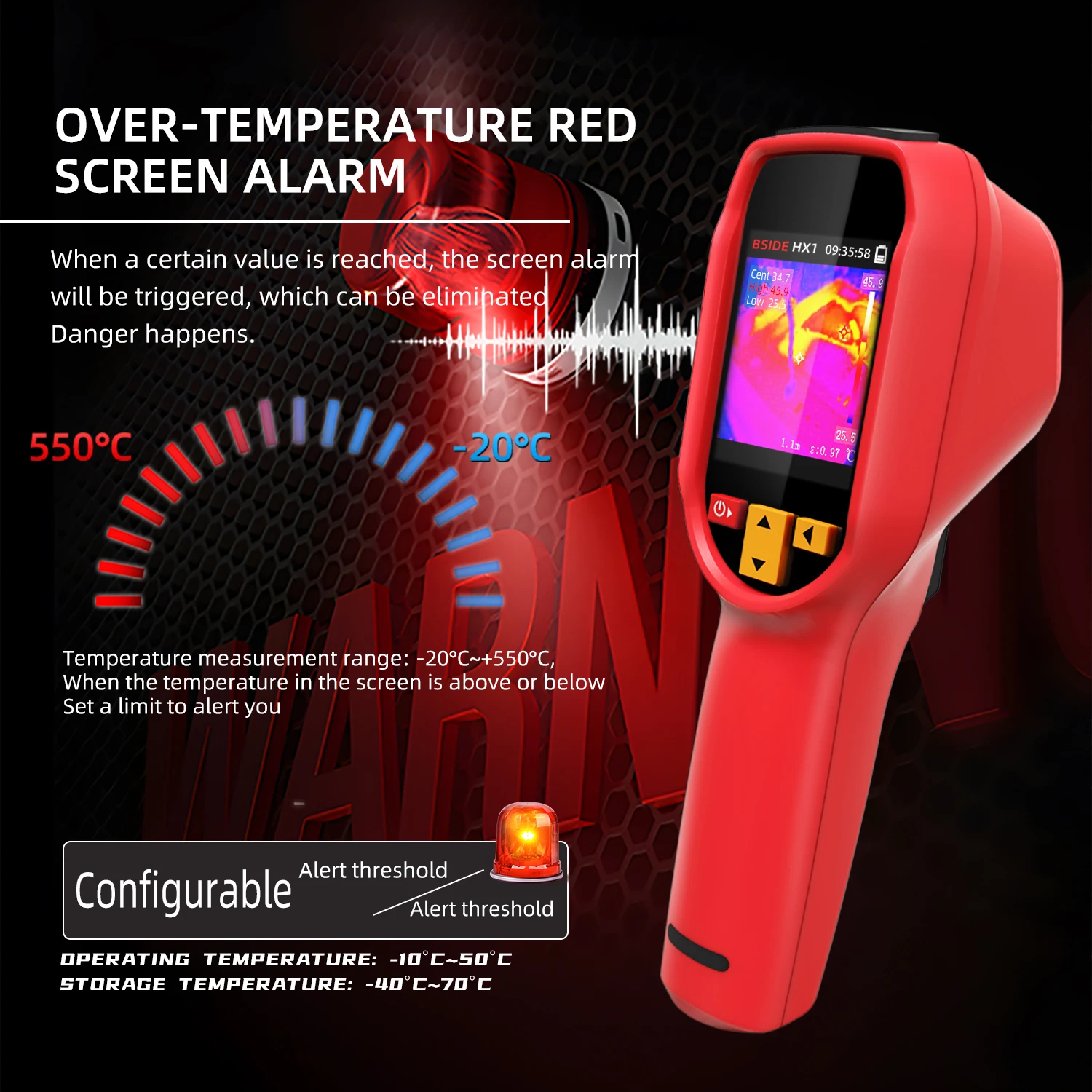

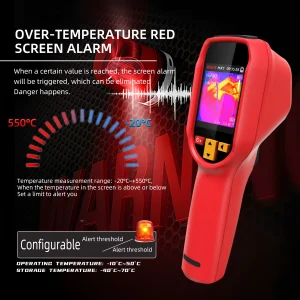

• High/low temperature alarms

• 4GB built-in storage

• PC analysis software support

• 2500mAh rechargeable battery

• IP54 dust and water resistance

• 1.5m drop protection

• Tripod mounting support

• Multi-language interface

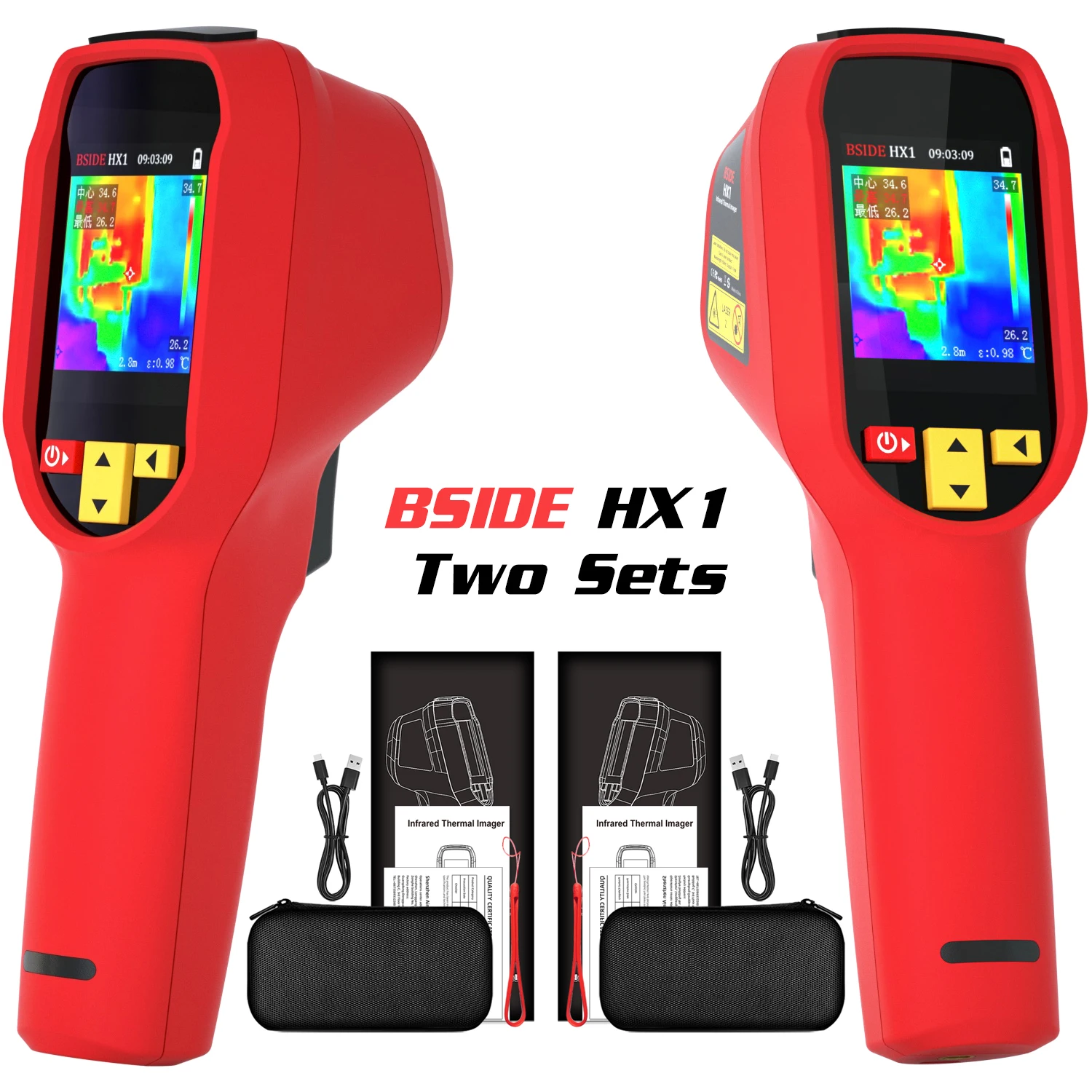

Package Includes:

• BSIDE HX1 Thermal Imaging Camera

• EVA Carrying Case

• User Manual

• Charging Accessories
